Pump Node

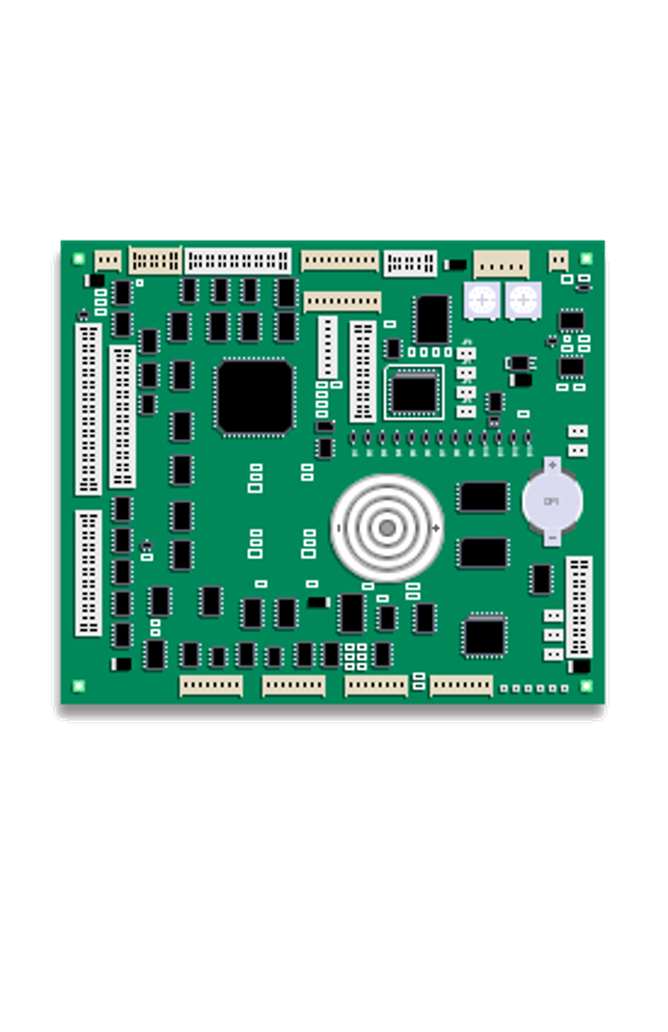

Pump Control Node (PCN)

Purpose: The PCN is used on Encore series dispensers to control fueling operations. It performs all totals calculations, processes handle switch information and pulser input. The PCN interfaces directly with the STP control board (power supply) and valve driver board. It also connects to the door node via the LON.

MDE: 3804

Variations

• PCN 2
• PCN 3
• PCN 3+
• PCN 4+
• PCN 5

Functions/Features: This device contains operating software and stores the pump side configuration. When used in MOC mode this node receives POS data from the CRIND communications board (Omnia or DCM2.x). When used in Generic mode this node receives POS data directly from the POS. Components connected to this node include: the power supply, door node, pulsers, and the valve converter PCA.

Connections: Standard	Connections: Optional
LEDs
D1 2W Reverse D2 PC RX D3 PC TX D4 solid when application is running D5 solid when application is running D6 Blinking if PCN unable to communicate with door node D7 Solid when side 1 handle lifted D8 Solid when side 2 handle lifted	D9 2W RX blinking when receiving POS or CRIND D10 NEU 2W TX Off when current is present On solid if no current present Blinking when transmitting to POS D11 NEU Stat off is normal condition D12 LON Term 1 solid is normal D13 LON Term 2 solid is normal D14 Heartbeat flashes steady
Jump Jacks	Test Points
